/ AUTOMATED STORAGE AND ARCHIVE SYSTEMS
Temperature-Controlled Vertical Storage
Combine controlled storage conditions with automated material access.
A vertical carousel that maintains the specified temperature and humidity conditions for sensitive stored products.
Explore
/ KLIMA CARGOMaintain storage conditions,
Maintain storage conditions,
make access easier.
Rotating carriers bring products to the access point while the cooling system controls the temperature inside the enclosure. Software provides traceability for operations and storage conditions.
- TemperatureControlled range: −20 °C to +8 °C.
- DimensionsHeight: 2.5–6 m; load capacity: 300 kg per carrier.
- SoftwareWMS integration, inventory and expiry date tracking.
Controlled storage
without building a cold room.
/ IN THE FIELDHumidity and temperature
Humidity and temperature
are controlled inside the machine.

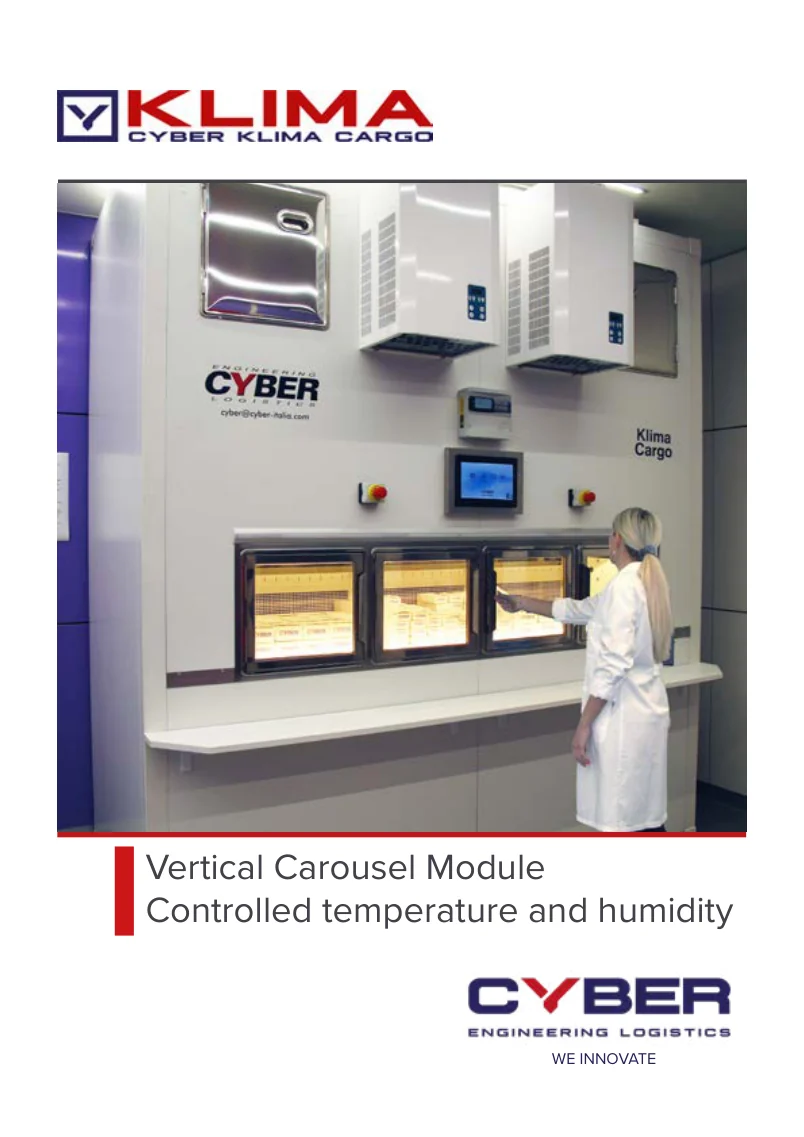

Klima Cargo is a temperature- and humidity-controlled storage system with rotating carriers, suited to pharmaceutical products requiring specific storage conditions. Its made-to-measure design adapts to customer requirements, providing secure storage under the correct conditions for medicines and other sensitive products.
- InsulationPolyurethane insulated isothermal panels covering the entire outer surface.
- CoolingMonoblock cooling consisting of an external condenser and an internal fan evaporator on top of the machine.
- Electronic control panelControl, protection and traceability of refrigeration and air conditioning in a single panel.
- Glass front coversGlass front opening for collection; anti-condensation lid and shutters.
Klima Cargo
technical specifications.
The values are taken from the Cyber Italia product documentation; the machine is manufactured according to plant dimensions.
| Specification | Value |
|---|---|
| Height | 2,500 – 6,000 mm |
| Width | 2,550 – 3,600 mm |
| Depth | 1,350 mm |
| Number of carriers | 6 – 40 |
| Carrier Available Width | 2,450 – 2,850 mm |
| Carrier Usable Height | 180 – 570 mm |
| Carrier load capacity | 300 kg |
| Total load capacity | 3,300 – 9,000 kg |
| Temperature range | −20 °C to +8 °C |
Key KLIMA CARGO
application scenarios.
Cold chain
Storage of temperature-sensitive medicines and vaccines.
Laboratory
Keeping reagents and samples in a controlled environment.
Cosmetics
Storage of formulations with temperature sensitivity.
Food
Management of product groups requiring a controlled environment.
Six features that replace
a separate cold room.
Klima Cargo maintains the required conditions for sensitive products inside the machine, without a separate cold room installation.
Flexible scaling
Height up to 6 m; no need for a separate cold room installation.
Customizable carrier
Internal carriers are adjusted according to the geometric dimensions of the products.
Integrated cooling
Cooling equipment that acts as a timer, thermostat and digital thermometer.
Control Panel
All operations are managed and tracked on the electronic panel.

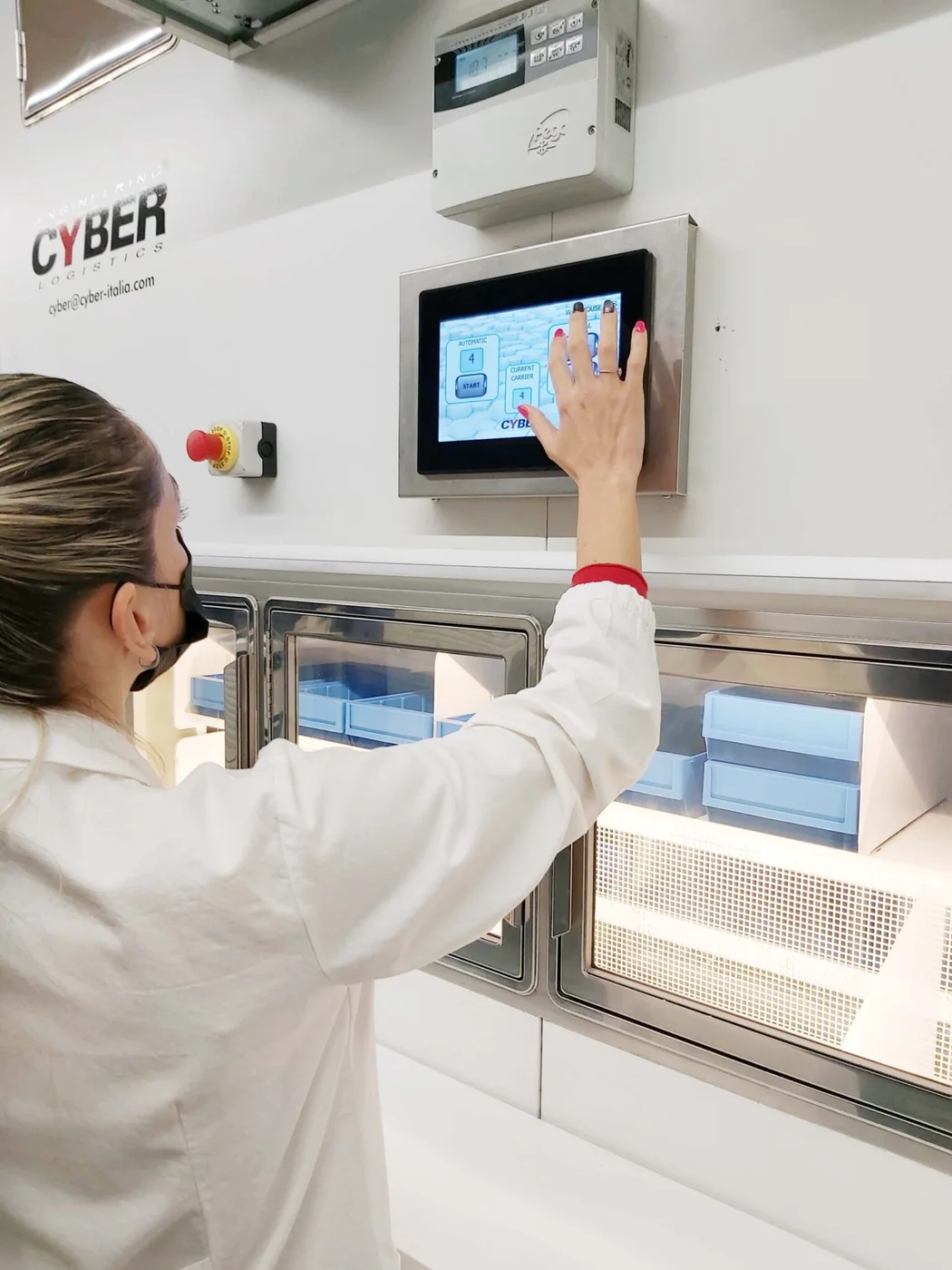

Touch screen
The interface between operator and machine.
Anti-condensation
Glazed covers and shutters that prevent condensation.
Identify the material, measure the area,
and size the system together.
- Site surveyMeasure material types, volume, inventory turnover and available space.
- DesignMachine size, rack arrangement, software and integration scope are determined.
- CommissioningSetup, stock transfer, user authorization and training are completed.
Let’s analyse storage and flow
around your real operation.
Share load profiles, throughput targets and space constraints so the right architecture can be assessed.
Request a storage and flow analysis Your request is routed directly to the relevant engineering team.
