Vertical Lift Module (VLM)
Use the vertical space for storage and bring the tray to the operator.
A vertical lift module for high-density storage of parts and materials. A central lift brings the selected tray to the picking point.
Explore
/ BOOSTERBring spare parts and production stock
Bring spare parts and production stock
together at a single access point.
The trays are positioned on both sides of the machine. The central lift automatically picks up the required tray and moves it to the picking area. The operator does not move between the shelves; the material comes to the operator in a controlled manner.
- HeightUp to 12 m; the existing ceiling height becomes the storage volume.
- Carrying capacityUp to 60,000 kg in total; 500 kg load per tray.
- SoftwareWMS integration for inventory, location and authorized access management.
Turn ceiling height
into storage capacity.

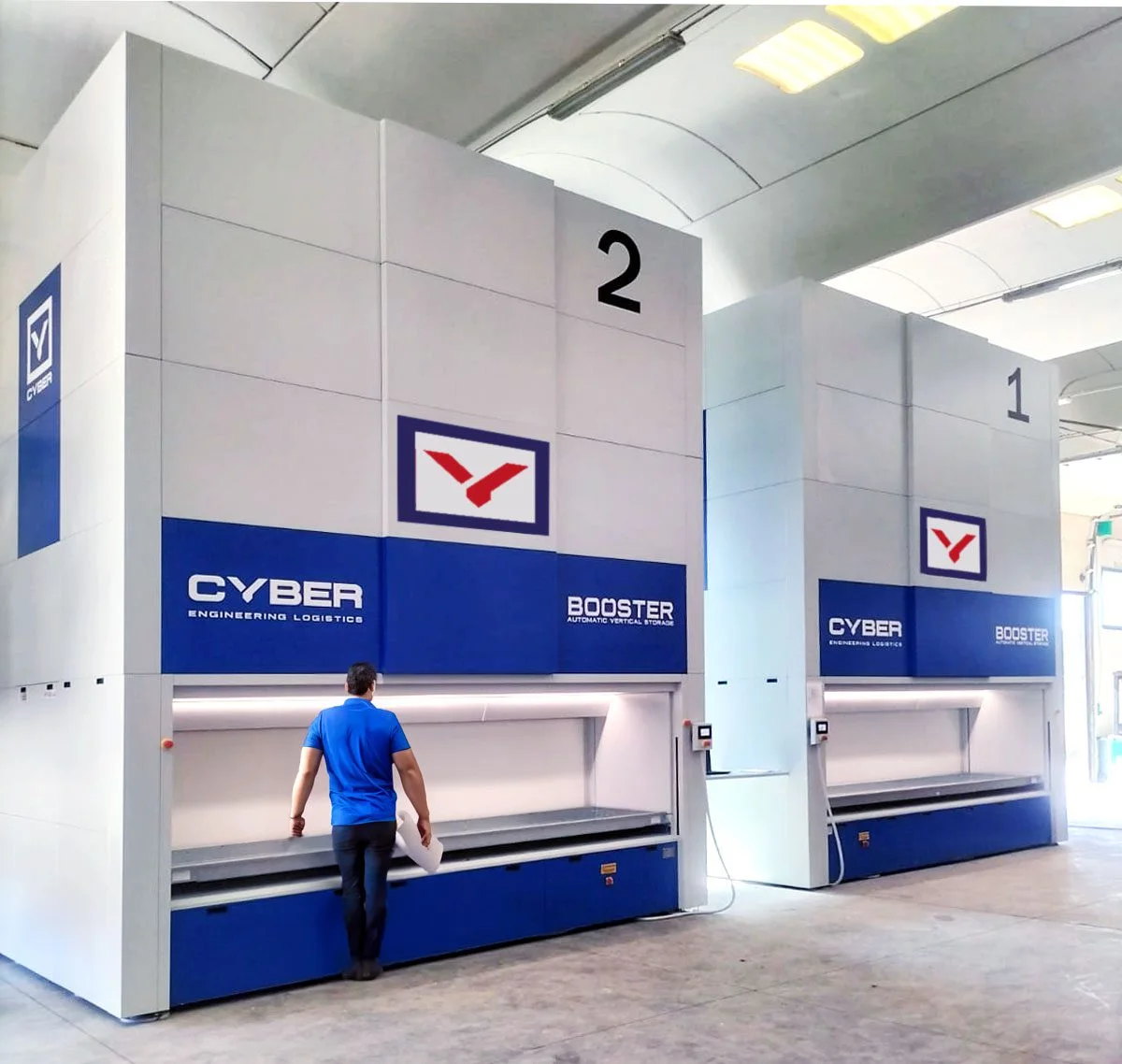

/ IN THE FIELDThe operator doesn't go around,
The operator doesn't go around,
material comes to the operator.
Booster is a modular indoor elevator warehouse that fully utilizes the height of the facility. It can be tailored to any storage need and any type of material; material management is simplified, warehouse organization and control are streamlined. It can be connected to existing management systems with CYBER.Game software; extensive accessory options allow it to be adapted to challenging storage environments.
- Full use of heightThe existing vertical space is used efficiently, the storage capacity is maximized.
- Tray FlexibilityThe trays can be quickly and easily configured and customized according to storage needs.
- Heterogeneous productProducts of different shapes and weights are stored together even in the same tray.
- Protection and accessOnly authorized personnel have access to stored material; the risk of damage and loss is reduced.
- TraceabilityAll operations and accesses are recorded; a detailed history is created for audit and inventory.
Booster
technical specifications.
The values are taken from the Cyber Italia product documentation; the machine size is determined by the ceiling height of the facility and the material profile.
| Specification | Value |
|---|---|
| Maximum height | 12 m |
| External Width | 2,600 – 4,585 mm |
| Module depth (inner bay) | 2,900 – 3,300 mm |
| Module depth (outside bay) | 3,900 – 4,300 mm |
| Usable tray width | 1,967 – 3,952 mm |
| Tray depth | 650 – 850 mm |
| Tray Height | 100 mm |
| Maximum speed | 1.5 m/s |
| Tray load capacity | 500 kg |
| Total load capacity | 60,000 kg |
Key BOOSTER
application scenarios.
Spare parts store
Critical spare parts are stored in an addressed and quickly accessible location.
Moulds and tooling
Controlled storage of heavy moulds, appliances and fixtures.
Production line feeding
Regular supply of line-side stocks from the central warehouse.
Maintenance supplies
Tracking MRO stocks with authorized access.
Booster,
equipped for your operation.
The booster is configured with additional hardware according to the workflow in the field; options are determined together during the analysis phase.
Double bay
A second access opening speeds up operator tasks and supports a smooth workflow across multiple levels.
Automated picking
Fully automated operation with robot and cobot integration; human intervention is minimized.
Tray customisation
Divided trays with dividers, boxes and accessories; product traceability increases.
Laser pointer
Indicates the correct location quickly and safely during picking and replenishment, reducing errors.
Load cell and counting scale
Weight control per tray and precise counting for small pieces.
Cyber Active Fire Prevention
Automatic fire detection and extinguishing with optical smoke detectors protecting the entire interior volume.
Identify the material, measure the area,
and size the system together.
- Site surveyMeasure material types, volume, inventory turnover and available space.
- DesignMachine size, rack arrangement, software and integration scope are determined.
- CommissioningSetup, stock transfer, user authorization and training are completed.
Let’s analyse storage and flow
around your real operation.
Share load profiles, throughput targets and space constraints so the right architecture can be assessed.
Request a storage and flow analysis Your request is routed directly to the relevant engineering team.
