Station waiting
Load transfer must match the line cycle instead of leaving the robot queued at the station.
/ SMART MOBILE ROBOTS
CMR — Conveyor / Heavy-Duty Mobile Robot
Connect fixed conveyor islands through autonomous load transfer.
Equipped with an onboard conveyor or a purpose-built transfer module, the CMR family automatically exchanges loads with stations and establishes uninterrupted flow between separate process islands.
Explore
Turn load transfer between stations into a hands-free flow locked to the line cycle.
Manual handover
Load exchange between conveyor and station should not depend on operator effort.
Heavy-load risk
Transport safety for heavy and bulky loads must be secured by the equipment itself.
/ CMR PRODUCT FAMILYConveyor and heavy-duty
Conveyor and heavy-duty
transport series.
With its in-house lifting and transfer modules, the Hikrobot CMR/HMR series covers automated placement requirements across very different scenarios. Three series — from machine-side conveyor transfer to rack towing and high-tonnage lifting — run within the same fleet logic.
- Conveyor / transmission seriesRoller, belt and chain driven top modules dock with machines, transmission lines and tooling. Adaptable to cartons, trays and pallets.
- Latent tractor seriesSlides under the rack and tows one or more racks with traction pins, supporting straight travel and curved turns.
- Heavy-duty lifting seriesLifts and moves mid to large loads in automotive, machinery, photovoltaic and lithium battery production.
One fleet logic,
three load classes.
Five models by load class
and transfer method.
Models that convey, tow or lift are selected to work together within the same RCS fleet.
C3-200LB2
- Load200 kg
- TransferRoller
- Height935 mm
The base conveyor model; docks directly with machines and transmission lines.
C3-400B4
- Load4 × 100 kg
- TransferRoller
- Height1175 mm
Its four-bay top module transfers several carriers within one run.

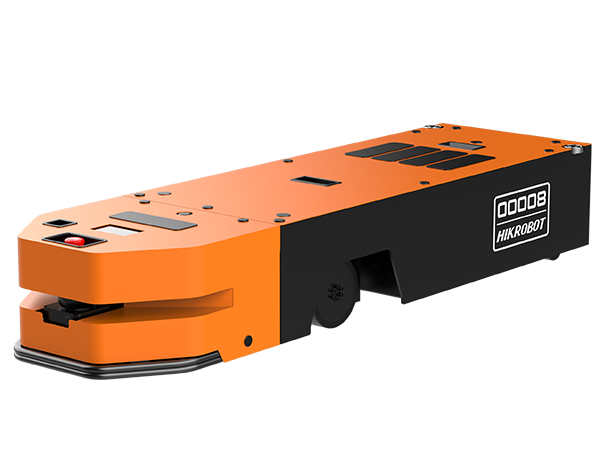

CT5-1000
- Load1,000 kg
- TransferTraction
- Height285 mm
Slides under the rack and tows one or more racks with its traction pin.
H8C-2000H
- Load2,000 kg
- TransferLifting
- DriveOmnidirectional
The omnidirectional heavy-duty model; lifts and moves mid-size loads.
H9C-3000CH
- Load3,000 kg
- TransferLifting
- DriveOmnidirectional
The highest capacity in the series, with high-tonnage electric lifting.
Technical data
for five models.
Values are taken from Hikrobot product documentation; cycle and capacity calculations are made separately for each project.
| Specification | C3-200LB2 | C3-400B4 | CT5-1000 | H8C-2000H | H9C-3000CH |
|---|---|---|---|---|---|
| Rated load (kg) | 200 | 4 × 100 | 1,000 | 2,000 | 3,000 |
| Series | Conveyor / transmission | Conveyor / transmission | Latent tractor | Heavy-duty lifting | Heavy-duty lifting |
| Transfer method | Roller conveyor | Roller conveyor | Traction | Lifting | Lifting |
| Rated speed (m/s) | 1.2 | 1.2 | 1.0 | 1.2 | 1.2 |
| Rated acceleration (m/s²) | 0.5 | 0.5 | 0.4 | 0.5 | 0.5 |
| Navigation | SLAM | SLAM / QR code | Laser SLAM + 2D barcode | SLAM / QR code | QR code |
| Obstacle avoidance | 360° laser + auxiliary protection | 360° laser / auxiliary protection | Laser | 360° laser | 360° laser |
| Dimensions L*W*H (mm) | 1250*745*935 | 1250*745*1175 | 1615*470*285 | 1900*1200*370 | 2000*1400*480 |
| Weight (kg) | 350 | 410 | 240 | 800 | 900 |
| Turning diameter (mm) | 1415 | 1415 | 2000 | Omnidirectional drive | Omnidirectional drive |
| Positioning accuracy (mm) | ±10 | ±10 | ±10 | ±10 | ±10 |
| Angular accuracy (°) | ±1 | ±1 | ±1 | ±1 | ±1 |
| Operating time (h) | 8 | 8 | 8 | 8 | 8 |

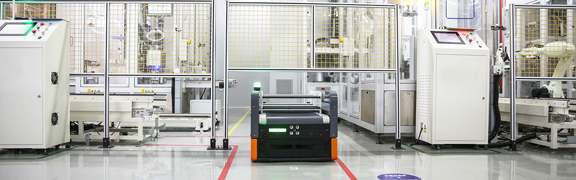

/ PROJECT REFERENCEIn-line material flow
In-line material flow
in photovoltaic manufacturing.
At a newly established plant producing solar cells and battery packs, conveyor mobile robots took over transfers between cell and module lines. The solution was built to operate together with upstream systems such as ERP and MES, and integrating it with shop-floor equipment raised the level of automation.
Material flows where
CMR stands out.
Automatic machine handover
The robot docks at the station and its onboard conveyor transfers the load in sync with the machine, hands-free.
Flow between process islands
Separate cell, module and test areas are linked without interruption through a single fleet.
Rack and trolley towing
The latent tractor model tows loaded racks in batches and takes over repetitive internal transport.
High-tonnage transport
The heavy-duty series positions dies and large bodies in tight spaces with omnidirectional travel.
Know the load, model the flow,
validate on site.
- DiscoveryLoad profile, station geometry, routes and cycle targets are measured.
- DesignSeries and model selection, top module, fleet and integration architecture are defined.
- CommissioningDocking and transfer scenarios are tested with real loads and the team is trained.
How we turned a similar need
into an operating solution.
Customer and facility information has been anonymized to meet confidentiality obligations.
Let’s analyse storage and flow
around your real operation.
Share load profiles, throughput targets and space constraints so the right architecture can be assessed.
Request a storage and flow analysis Your request is routed directly to the relevant engineering team.
