Recipe and sequence complexity
The risk of deviation grows when material, quantity, time, temperature and process sequence are executed manually.
/ INDUSTRIAL SOLUTION
11

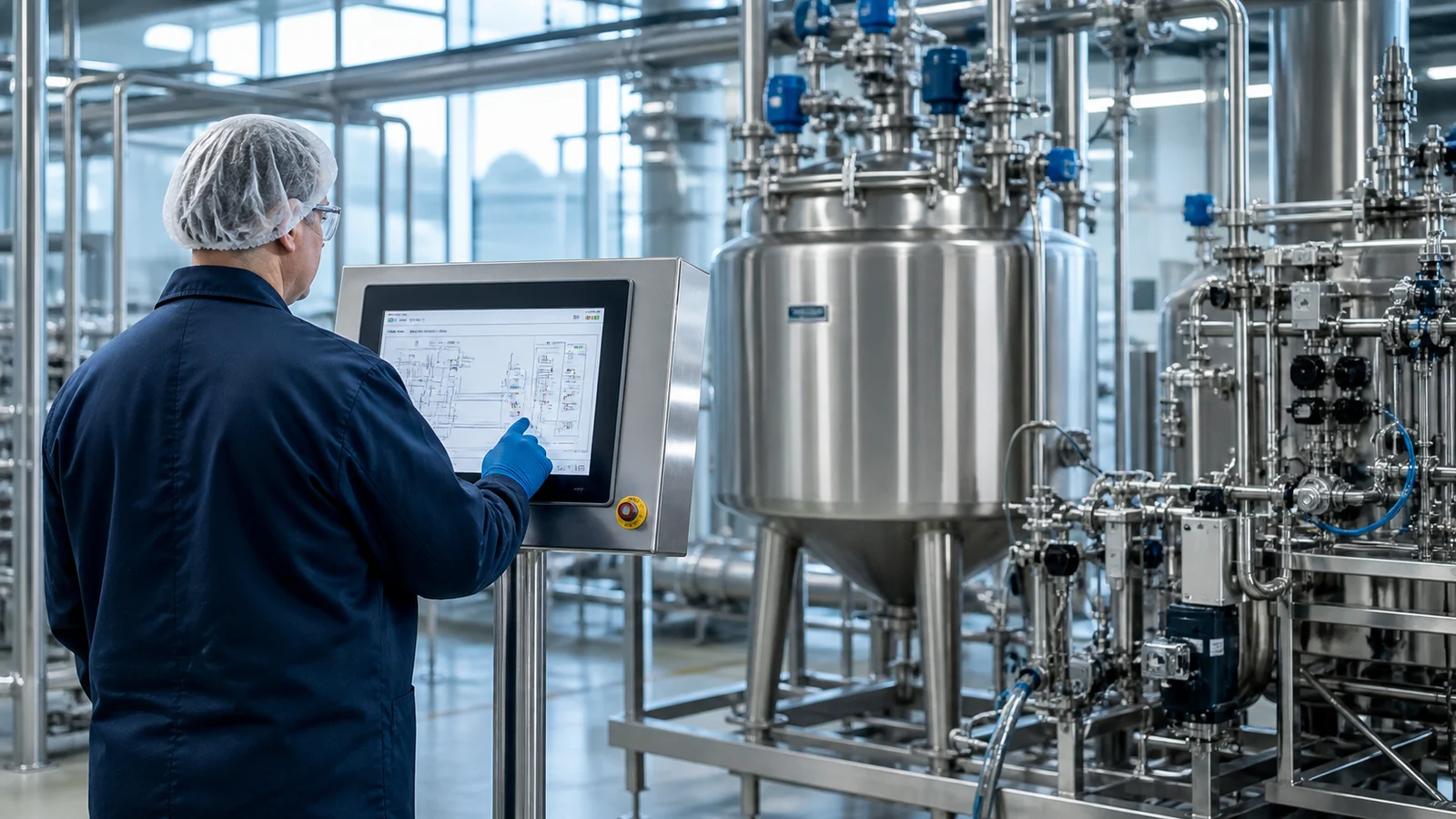

Process Batch Recipe System
Execute every recipe through validated steps and complete every batch with a comprehensive record.
Process Batch recipe system based on ISA-88; It combines recipe management, equipment modelling, automatic phase execution, resource allocation and electronic batch recording into a single production architecture.
Explore the solution
Operator-dependent production steps; into a verified recipe, controlled equipment and complete batch record.
Variable batch quality
Process conditions should be repeatable when the same product is produced on different equipment and shifts.
Incomplete production history
Material, operator, alarm, intervention and process values should be combined in a single batch record.
/ ISA-88 APPROACHSeparate the prescription from the equipment,
Separate the prescription from the equipment,
make production flexible.
ISA-88 based model; It handles product procedure, equipment capabilities, and field control in separate layers. Thus, new product and capacity changes are managed with controlled, reusable building blocks.
RecipeProcedure and parameters
EquipmentUnit, modules and phases
RecordComplete batch history
- Master recipeProduct procedure, phase sequence, parameter limits and version information are managed centrally.
- Resource managementAppropriate units and equipment are allocated to production according to status and availability information.
- Electronic recordingActual values, deviations, alarms and operator operations are shared with the batch. is associated.
The recipe starts,
is completed with each phase condition.
Graphic; It shows the verification and receipt of raw materials into the tank, the sequential execution of mixing and heating phases, followed by the controlled transfer of the product.
ARAW MATERIAL
BADDITION
UNIT 01MIXING TANK
HEAT CONTROL
01 DOSAGE02 MIX03 HEAT04 TRANSFER
/ ENGINEERING SCOPEFrom recipe to field control
From recipe to field control
single production model.
Physical process, equipment capabilities, procedure logic and production records are designed with the same nomenclature and status model.
Physical and equipment model
Process cell, unit, equipment module and control module boundaries are created according to process functions.
Master recipe management
Procedure, operation, phase, parameter, tolerance, version and approval flows are defined.
Reusable phases
Dosing, mixing, heating, holding and transfer functions are converted into standard control objects.
Equipment allocation and arbitrage
Sharing of common lines, tanks and auxiliary equipment is managed automatically without conflict.
Deviation and operator management
Parameter Exceptional conditions, holding, intervention and electronic signature requirements are recorded.
Electronic batch recording
Material lot, actual values, events, alarms and durations are combined in a single report.
What does the product want,
how does the equipment perform it?
The procedure layer defines the production steps of the product. The equipment layer offers standard phases that can perform these steps; The control layer carries out valves, motors and measurements.
Recipe and
operation
Product-specific sequence and parameters are defined.
→Equipment
capability
Standard function is called on the appropriate unit.
→Field
execution
Engine, valve and measurement cycles command
→Actual
batch result
Steps, values and deviations are recorded with timestamp.
From process analysis to stable production,
six controlled steps.
- 01Analyze process and products
Product families, procedures, materials, equipment and quality limits removed.
- 02Create ISA-88 model
Physical, equipment, procedure and control boundaries are defined with common terminology.
- 03Standardize phases
Reused equipment capabilities with status and error behaviors are developed.
- 04Configure recipes
Steps, parameters, tolerances, approval and deviation flows are transferred to the system.
- 05Verify scenarios
Test normal production, hold, restart, equipment failure and operator intervention
- 06Improve performance
Phase times, waiting, deviation and equipment usage are improved based on batch data.
Wherever there is prescription production
same quality, complete record.
Chemistry and special chemicals
Recipe controlled dosage, reaction, mixing and transfer steps execution.
Food and beverage
Management of formula, cooking, mixing, CIP and lot traceability in a single batch record.
Pharmaceutical and life sciences
Versioned prescription, controlled intervention, electronic recording and verification requirements.
Paint, coating and structure chemistry
Precise dosing, sequence control and reproducible product quality in multi-component formulas.
How we turned a similar need
into an operating solution.
Customer and facility information has been anonymized to meet confidentiality obligations.
ANONYMOUS PROJECTRELATED SOLUTION
Recipe, Material Tracking and Process Safety in a Chemical Plant
Manual recipe execution was transformed into a controlled batch operation combining material identity, equipment conditions and process safeguards.
Read the story →
ANONYMOUS PROJECTRELATED SOLUTION
Recipe, Quality and Line Traceability in Cable Production
Machine settings and quality evidence were connected through product recipes, coil identity and traceable process records.
Read the story →
ANONYMOUS PROJECTRELATED SOLUTION
Recipe, CIP and Traceable Processing in Food Production
Recipe execution and cleaning evidence were combined into a controlled batch history covering material, process and hygiene conditions.
Read the story →Let’s clarify your process
and control requirements.
Share recipes, material flow and operating constraints with the process automation team.
Request a process assessment Your request is routed directly to the relevant engineering team.
